Die PTZmove.system-Serie wurde für die Anwendung in kleinen bis mittleren Studios entwickelt. Ausgelegt wurde es für die Aufnahme von PTZ-Kameras (im speziellen der Panasonic PTZ-Kamera-Reihe), PT-Heads mit Box-Kameras und verschiedenen Zusatz-Systemen. Der jeweilige modulare System-Halter (KST-SH) kann mit unterschiedlichen Träger-Einheiten (KST-ST) ausgerüstet werden, welche von Hand, elektrisch oder robotisch verfahrbar sind.
Wall-mounting base module 1: KST-SH-B1 (for hand-guided height adjustment)
The KST-SH-B1 system holder of the PTZmove.system series is designed for vertical mounting on suitable walls.When mounting, ensure that the wall construction is sufficiently stable. Depending on the equipment of the base module, this may require different load capacities.
The “KST-ST” system beams are mounted to the vertical beams with mechanical clamps and adjusted by hand to the desired usage height.
- sturdy aluminum construction
- Glass bead blasted natural aluminum surface (optional individual painting in RAL colors)
- Wall mounting with up to eight screws (mounting material is not included)
- Standard length 1,500 mm (optionally also available in special lengths)
- two vertical support tubes for holding the
- four Manfrotto Superclamps of the suitable KST-ST modules
Wall-mounting base module 2: KST-SH-B2 (for motor-guided height adjustment)
The basic module-2 KST-SH-B2 is intended for vertical mounting on suitable walls. When mounting, ensure that the wall construction is sufficiently stable. Depending on the equipment of the base module, this may require different load capacities.
The KST-ST system girders are guided by precise linear guides on the vertical girders and adjusted to the useful height by motor.
- sturdy aluminum construction
- glass bead blasted aluminum natural surface (optional individual painting in RAL colors)
- Fastening to the wall with up to eight screws (fastening material is not included)
- Standard length 1,500 mm (optionally also available in special lengths)
- two vertical support profiles with four precise linear guides with ball bearings of the suitable KST-ST modules
- 12 V linear drive for adjustment by 800 mm
- 15 mm / sec Travel speed (≤ 30 kg)
Wall-mounting base module 3: KST-SH-B3 (for robotic height adjustment, CamBot® compatible)
- sturdy aluminum construction
- glass bead blasted aluminum natural surface (optional individual painting in RAL colors)
- Fastening to the wall with up to eight screws (fastening material is not included)
- Standard length 1,500 mm (optionally also available in special lengths)
- two vertical beam profiles with four precise slide bearing linear guides
- Robotics encoder spindle drive for vertical
- Travel by max. 1,200 mm
- max. 250 mm/sec Traversing speed with up to 30 kg load
Wall-mounting base module 4: KST-SH-B4 (for robotic height adjustment, CamBot® compatible)
The KST-SH-B4 system holder is intended for vertical or horizontal mounting on suitable walls. When mounting, ensure that the wall construction is sufficiently stable. Depending on the equipment of the base module, this may require different load capacities.
The KST-ST system carriers are guided by precise linear guides on the carriers, moved by encoder stepper motors and can be used for “on-air” travel. (CamBot®.PTZ or CamBot®.Pro required).
- sturdy aluminum construction
- glass bead blasted aluminum natural surface (optional individual painting in RAL colors)
- Wall mounting with up to eight screws (mounting material not included)
- Standard length of the assembly 2,000 mm (optionally also available in special lengths)
- two vertical beam profiles with four precise linear guides mounted on ball bearings
- Robotics Encoder belt drive (redundant) for
- vertical or horizontal movement by 1,600 mm (optionally also special lengths)
- max. 500 mm / sec Travel speed at ≤ 20 kg load (limited depending on application)
Beam module KST-ST-PTZ1
The KST-ST-PTZ1 carrier module is designed to accommodate one PTZ camera (Panasonic AW-UE100/150). It can be combined with the base modules KST-SH-B1-4.
In addition to the camera holder, the carrier has another mounting position for a small display or, for example, a camera number plate.
- stable Resopal solid support unit (black)
- a PTZ mounting bracket for Panasonic PTZ cameras
- Additional bracket for another display or
- Camera marking
- Beam unit 40 x 28 cm
- up to 10 kg payload
Beam module KST-ST-PTZ2H
The KST-ST-PTZ2H carrier module is designed to hold two PTZ cameras (Panasonic AW-UE100/150) in a horizontal arrangement. It can be combined with the basic modules KST-SH-B1-4 of the PTZmove.system series.
In addition to two camera holders, the carrier has two mounting positions for a small display or, for example, a camera number plate.
- stable Resopal solid support unit (black)
- two PTZ mounting bracket for Panasonic PTZ cameras
- Additional bracket for another display or
- Camera marking
- Support unit 40 x 40 cm
- up to 20 kg load capacity
Carrier module KST-ST-PTZ2V
The KST-ST-PTZ2V carrier module is intended for mounting
two PTZ cameras (Panasonic AW-UE100/150) in a horizontal arrangement. It can be combined with the KST-SH-B1-4 base modules.
In addition to two camera holders, the carrier has two mounting positions for small displays or, for example, camera marking plates.
- stable Resopal solid support unit (black)
- two PTZ mounting bracket for Panasonic PTZ cameras
- Additional holder for two displays or camera markers
- Beam unit 86.5 x 28 cm
- up to 20 kg load capacity
Beam module KST-ST-PTZD
The KST-ST-PTZD carrier module is designed for recording
from a PTZ camera (Panasonic AW-UE100/150) and a display. It can be combined with the KST-SH-B1 to 4 base modules.

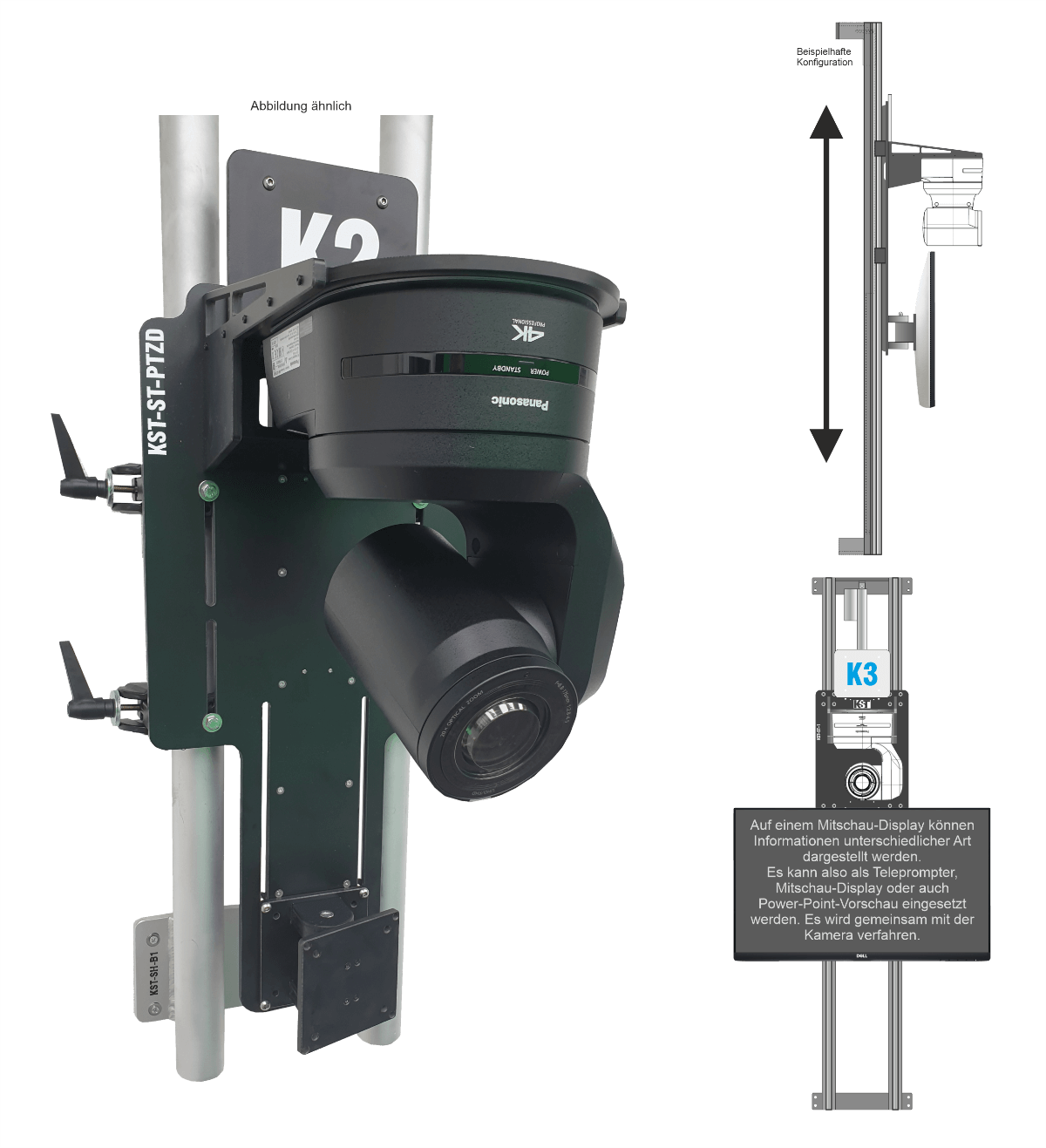

In addition to the camera mount, the PTZmove.system carrier has a height-adjustable, swiveling Vesa mount for displays up to 43″ and an additional mounting position for a second, smaller display or, for example, a camera number plate.
- stable Resopal solid support unit (black)
- PTZ Mounting Bracket for Panasonic PTZ Cameras
- Vesa mount for max 32″ displays, swiveling
- Additional bracket for another display or
- Camera marking
- Beam unit 76.5 x 28 cm
- up to 30 kg load capacity
